Powergrip Coupling 43SF

Powergrip Coupling 43SF is an elastic coupling with no gap, resistant on high shocks. No grease or no maintenance, easy and quick installation.

(bush fixed on the shaft with a screw).

Dimensions and Technical Features;

Technical Features:

Power per 100 r/min = 0,381 HP ( 0,0284 kW)

Maximum Torque = 8,136 Nm

Nominal Torque = 2,712 Nm

Radiale Misalignment =1,6 mm

Angular Misalignment = 7,5

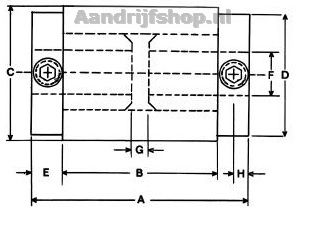

Dimensions:

A = 58,7 mm

B = 39,7 mm

C = 44,5 mm

D = 41,3 mm

E = 9,5 mm

G = 1,6 mm

H = 4,8 mm
