Powergrip Coupling 56SF

Powergrip Coupling 56SF is an elastic coupling with no gap, resistant on high shocks. No grease or no maintenance, easy and quick installation.

(bush fixed on the shaft with a screw).

Dimensions and Technical Features;

Technical Features:

Power per 100 r/min = 0,1428 HP ( 0,1065 kW)

Maximum Torque = 30,51 Nm

Nominal Torque = 10,17 Nm

Radiale Misalignment =1,6 mm

Angular Misalignment = 7,5

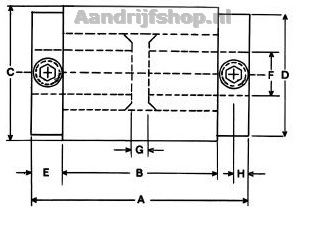

Dimensions:

A = 61,9 mm

B = 39,7 mm

C = 58,7 mm

D = 52,4 mm

E = 11,1 mm

G = 1,6 mm

H = 5,6 mm
