Powergrip Coupling 86SF

Powergrip Coupling 86SF is an elastic coupling with no gap, resistant on high shocks. No grease or no maintenance, easy and quick installation.

(bush fixed on the shaft with a screw).

Dimensions and Technical Features;

Technical Features:

Power per 100 r/min = 0,7616 HP ( 0,5679 kW)

Maximum Torque = 162,72 Nm

Nominal Torque = 54,24 Nm

Radiale Misalignment =3,2 mm

Angular Misalignment = 7,5

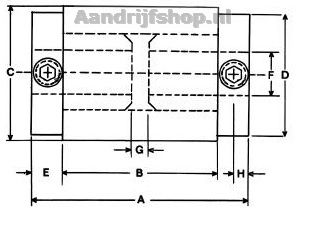

Dimensions:

A = 87,4 mm

B = 54,0 mm

C = 103,2 mm

D = 95,3 mm

E = 16,7 mm

G = 3,2 mm

H = 8,7 mm
